Symbol

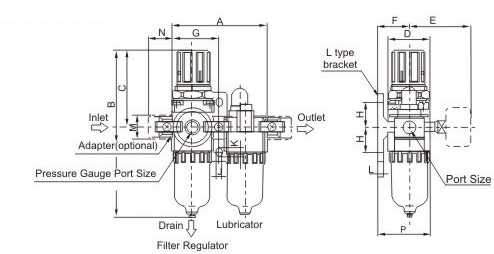

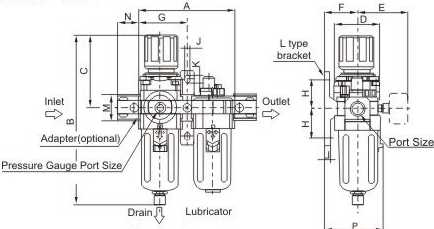

Dimension
Technical Specification
| Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 |
| MArtl(iP Filter Regulator | AW1000 | AW2000 | AW2000 | AW3000 | AW3000 | AW4000 | AW4000 | AW4000 | AW5000 | AW5000 |
| Lubricator | AL2000 | AL2000 | AL2000 | AL3000 | AL3000 | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 |
| Port Size | M5x0.8 | PT 1/8 | PT 1/4 | PT 1/4 | PT3/8 | PT3/8 | PT 1/2 | G3/4 | G3/4 | G1 |
| Pressure Gauge Port Size | M5x0.8 | PT 1/8 | PT1/8 | PT1/8 | PT 1/8 | PT1/4 | PT 1/4 | PT 1/4 | PT 1/4 | PT1/4 |
| Rated Flow(LZMin) | 90 | 500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 5000 | 5000 |
| Working Media | Compressed Air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Range of Regulation | 0.05-0.7Mpa | 0.05~0.85Mpa | ||||||||
| Ambient Temperature | 5~60t | |||||||||
| Filter Precision | 40 p m(Normal)or 5 p m(Customized) | |||||||||
| Suggested Lubricating Oil | Turbine No.1 Oil(ISO VG32) | |||||||||
| Bracket(one) | Y10T | Y20T | Y30T | Y40T | Y50T | Y60T | ||||
| Pressure Gauge | Y25-M5 | Y40-01 | Y50-02 | |||||||
| Body Material | Aluminum Alloy | |||||||||
| Material Cup Material | PC | |||||||||
| Cup Cover | AC1010~AC2010:without AC301AC5010:with(Steel) | |||||||||
| Model | Port Size A | B | C | D E F | G | H J | K | L | M | N | P | |||||
| AC1010 | M5x0.8 | 58 | 109.5 | 50.5 | 25 | 26 | 25 | 29 | 20 | 4.5 | 7.5 | 5 | 17.5 | 16 | 38.5 | |
| AC2010 | PT1/8.PT1/4 | 90 | 164.5 | 78 | 40 | 56.8 | 30 | 45 | 24 | 5.5 | 8.5 | 5 | 22 | 23 | 50 | |
| AC3010 | PT1/4.PT3/8 | 117 | 211 | 92.5 | 53 | 60.8 | 41 | 58.5 | 35 | 7 | 11 | 7 | 34.5 | 26 | 70.5 | |
| AC4010 | PT3/8.PT1/2 | 154 | 262.5 | 112 | 70 | 70.5 | 50 | 77 | 40 | 9 | 13 | 7 | 42.2 | 26 | 88 | |
| AC4010-06 | G3/4 | 164 | 267 | 114 | 70 | 70 5 | 50 | 82 | 40 | 9 | 13 | 7 | 46.2 | 36 | 88 | |
| AC5010 | G3/4.G1 | 195 | 345 | 115 | 70 | 70.5 | 50 | 95 | 45 | 12 | 16 | 10 | 51 | 46 | 98 | y |
| Ensured Pressure Resistance | 1.5MPa(15kgf/cm²) |
| Highest Working Pressure | 1.0MPa(10kgf/cm²) |
| Ambient and Fluid Temperature | 5-60°C |
| * Filter Precision | 25 µm |
| Container Material | Polycarbonate |
| Protective Cover | AC2010(Not Available) AC3010-5010(Available) |
| Pressure Regulating Range | AC1010:0.05-0.7 Mpa(0.5-7kgf/cm²) AC2010-5010:0.05-0.85 Mpa(0.5-8.5kgf/cm²) |
| Valve Type | With Overflow |
| Model | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
| Rated Flow | 500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 4000 | 4500 | |
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G3/4 | G1 | |
| Filtering Eleiment Roughness | 25 | |||||||||
| Highest Working Pressure | 1.0MPa | |||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||
| Range of Adjustable Pressure | 0.05-0.85MPa | |||||||||
| Recommended Oil Use | ISO VG 32 | |||||||||
| Container Material | Polycarbonate | |||||||||
| Protective Cover | Not Available | Available | ||||||||
| Drain Function | Differential Drain | Differential Drain, Automatic Drain | ||||||||
| Valve Type | With Overflow | |||||||||
| Assembly | Filter | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW500 | |
