Factory Direct UL-02 UL-03 UL-04 Shako Type Air Filter Regulator

UL-02 UL-03 UL-04 Shako type air filter regulator

Our mission should be to turn out to be an innovative supplier of high-tech digital and communication devices by furnishing price added structure, world-class producing, and service capabilities for Cheap PriceList for China Hot Sales Brita 2L Water Jug&Water Pitcher, If you're on the lookout forever Excellent at a superior selling price and timely delivery. Do speak to us. Cheap PriceList for China Water Pitcher and Water Jug price, Look forward to the future, we will focus more on the brand building and promotion . And in the process of our brand global strategic layout we welcome more and more partners join us, work together with us based on mutual benefit. Let's develop market by fully utilizing our comprehensive advantages and strive for building.

Symbol

singleimg

Technical Specification

Model	UL-02	UL-03	UL-04	UL-06	UL-08
Port Size	G1/4	G3/8	G1/2	G3/4	G1
Working Media	Compressed Air
Max. Proof Pressure	1.5MPa
Max. Working Pressure	0.9MPa
Max. Flow	2080L/min	2100L/min	2600Umin	7940L/min	8200L/min
Oil Cup Capacity	125ml			235ml
Suggested Lubricating Oil	Oil ISO VG32 or equivalent
Ambient Temperature	-10~60P
Material		Body： Die-cast Aluminum； Cup		PC

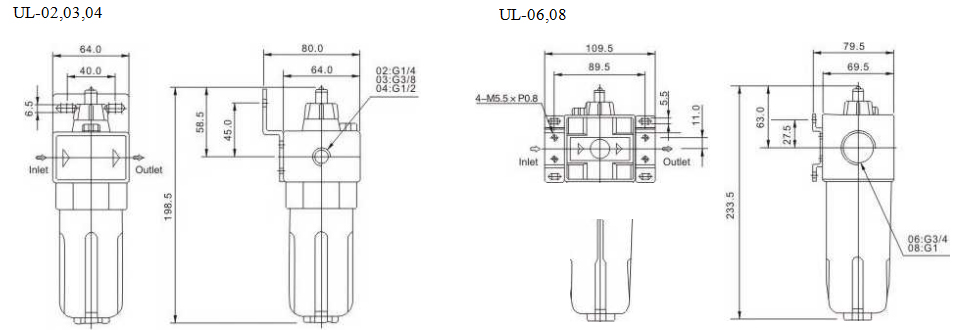

Dimension

singliemgsize

The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed. The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation. The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient. FRL- Air Treatment Unit -OU (filter+regulator+lubricator)

Guaranteed pressure resistance	1.5Mpa
Max.working pressure	1.0Mpa
Working Temperature	5-60°C
Pressure adjusting range	0.05-0.85Mpa
Valve type	With overflow

abide by the contract", conforms into the market requirement, joins in the market competition by its good quality also as provides a lot more comprehensive and great company for purchasers to let them turn into huge winner. The pursue from the firm, would be the clients' gratification for Good quality China SMC Air Regulator Ar3000-02 Filter Regulator, On account of superior high quality and competitive value , we'll be the sector leader, make sure you don’t hesitate to make contact with us by cell phone or email, should you be intrigued in any of our products and solutions. Good quality China Ar3000-03, Frl, We have been consistently broadening the market within Romania in addition to preparation punching in extra premium quality merchandise connected with printer on t shirt so that you can Romania. Most people firmly believe we have the whole capacity to supply you happy solutions.

UL-02 UL-03 UL-04 Shako type air filter regulator

Products Details

Symbol

Technical Specification

Dimension
